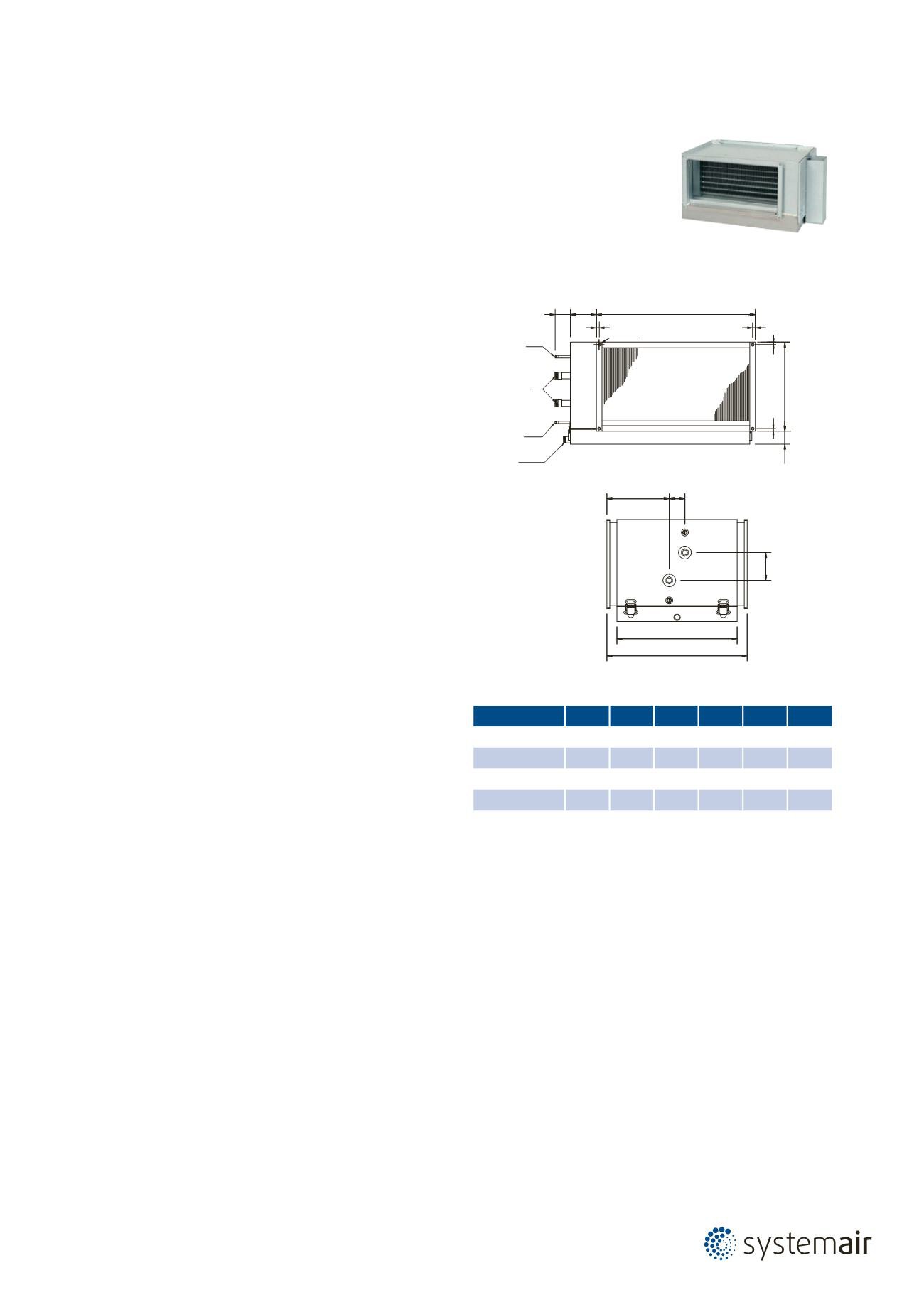

Cold water coil for rectangular ducts
Casing from galvanised sheet steel. Water-battery from
copper tubes and aluminium fins. Air vent and drain valve
included. Drip pan from stainless steel and condensate
connection (R½”). Max working pressure 1.6 MPa (16
bar). For water connection left or right, Two inspection
covers for cleaning and maintenance. Droplet separator DE
as an accessory regardless of air direction. Recommended
for air velocities from 3m/s
N
R½”
58 90
B
9
9
ø1 0 (8 x)
9
H
35
395
33 0
K
M
I
9
PGK
B
H
I
K
M N
400x200-3-2.0 438 238 70 176 43 R 3/4
500x250-3-2.0 538 288 120 176 43 R 3/4
600x350-3-2 638 388 220 176 43 R 3/4
700x400-3-2.0 738 438 250 170 55
R1
