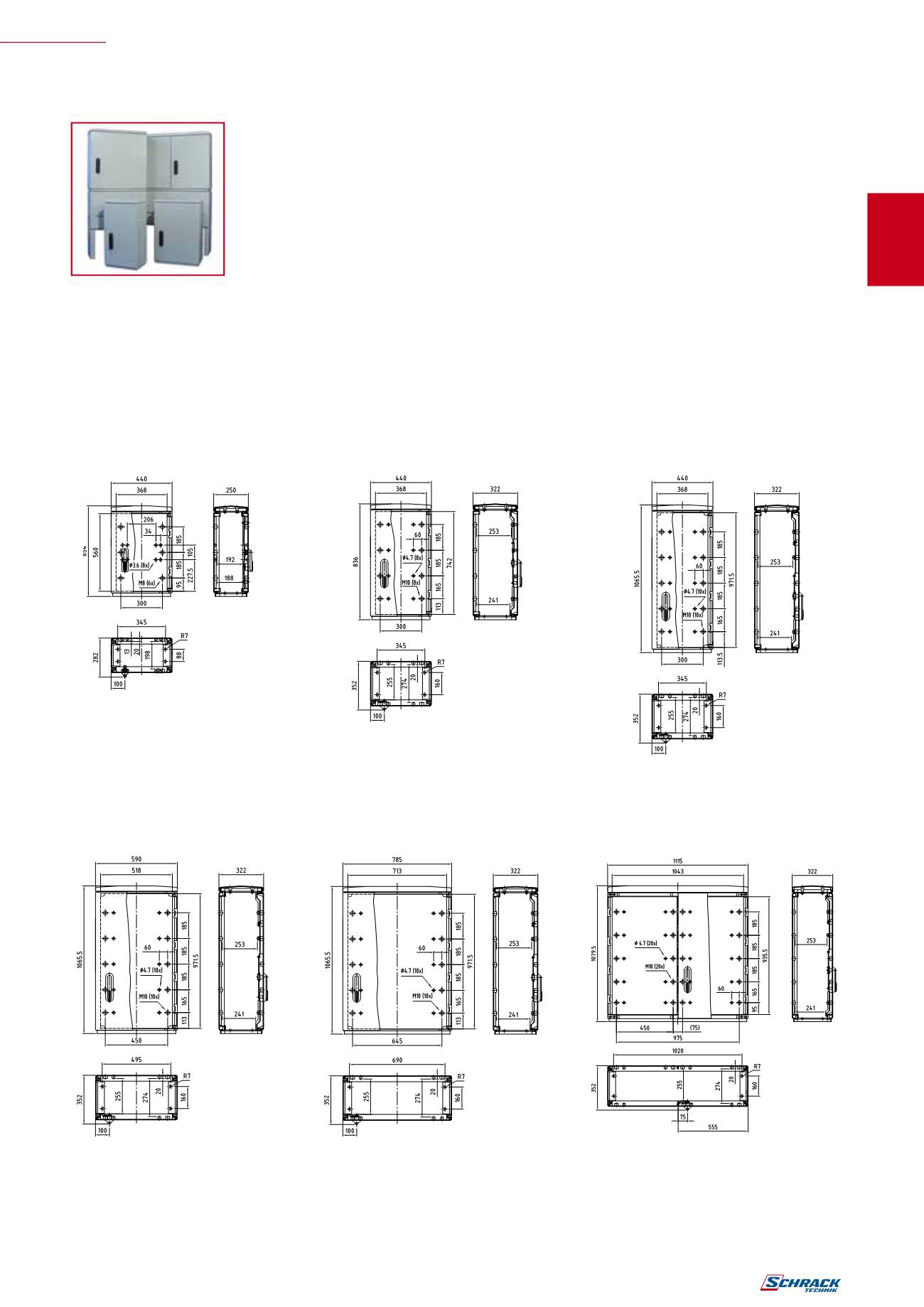

OMARE IZ POLIESTRA tip schrack ip 44
w
SCHRACK-INFO
• vroče stisnjen poliester, ojačen s steklenimi vlakni, barva: siva RAL 7035,
• brez halogenov,
• stopnja mehanske zaščite IP 44,
• dvojna izolacija, zaščitni razred II,
• po standardu: IEC EN60439-5, IEC EN60439-1, IEC EN60439-5/1
• samougasen,
• odporen proti razgradnji,
• visoko odporen proti udarcem, kemičnim in atmosferskim vplivom,
• vodoodbojen,
• temperaturno območje: –50 °C do 125 °C,
• UV-odporen,
• več možnosti uporabe in kombinacij,
• vrtljiva ročka, tritočkovni zapiralni sistem, pripravljeno za polcilindrični vložek
.
w
OMARE IZ POLIESTRA tip schrack ip 44
schrack poliester IP 44
Seite
Page 9
Detail /Details Type F3/1650/250
Verteilerschrank /
Cabinet
Type
Type
Bestellnr.
Order-no.
Außenmaße
External
dimension
F3/1650/250
1443.1
440x654x250
Eingrabsockel /
Base
S3/1950/250
1457.ST
420x950x239
S3/11200/250
1460.ST
420x1200x239
S3/1S1200/250
1461.ST
420x1200x239
Sockel fürBodenmontage /
Basefloor-mounted
SB3/1250/250
1472
420x250x239
SB3/1500/250
1473
420x500x239
Montageplatte /
Mountingplate
E/F3/1650
0664
360x550x6
Sockelrost /
Basegrid
KSRS3X00
1515
600x400x60
F3/1650/250
052/052 1/3BS
052/)0021( 059 1/3S
SB3/1500/250
Seite
Page 12
Verteilerschrank /
Cabinet
Type
Type
Bestellnr.
Order-no.
Außenmaße
External
dimension
F3/1850/320
0579.1
440x836x322
Eingrabsockel /
Basefloor-mounted
S3/1X950/320
SX310
425x950x310
S3/1X1200/320
SX320
425x1200x310
S3/1SX1200/320 SX330
425x1200x310
Sockel fürBodenmontage /
Basefloor-mounted
SB3/1250/320
1416
420x250x310
SB3/1500/320
1417
420x500x310
Montageplatte /
Mountingplate
E/F3/1850
0642
360x648x6
Sockelrost /
Basegrid
KSRS3X00
1515
600x400x60
F3/1850/320
S3/1950 (1200)/320
SB3/1250/320
SB3/1500/320
Detail /Details Type F3/1850/320
Seite
Page 14
Detail /Details Type F3/11080/3
F3/11080/320
S3/1950 (1200)/320
Verteilerschrank /
Cabinet
Type
Type
Bestellnr.
Order-no.
Außenmaße
External
dimension
F41080/320
0318.1
590x1065x322
Eingrabsockel /
Base
S4X0950/320
SX410
590x950x310
S4X01200/320
SX420
590x1200x310
S4SX01200/320
SX430
590x1200x310
Sockel fürBodenmontage /
Basefloor-mounted
SB4250/320
1418
586x250x311
SB4500/320
1420
586x500x311
Montageplatte /
Mountingplate
E/F41080
0637
500x900x6
Sockelrost /
Basegrid
KSRS4X0
1515
600x400x60
Detail Details Type F41080/320
F41080/320
S4X0950 (1200)/320
SB4250/320
SB4500/320
Detail /Details Type F51080/320
Verteilerschrank /
Cabinet
Type
Type
Bestellnr.
Order-no.
Außenmaße
External
dimension
F51080/320
0319.1
785x1065x322
Eingrabsockel /
Base
S5X1950/320
SX510
785x950x310
S5X11200/320
SX520
785x1200x310
S5SX11200/320
SX530
785x1200x310
Sockel fürBodenmontage /
Basefloor-mounted
SB5250/320
1421
781x250x311
SB5500/320
1422
781x500x311
Montageplatte /
Mountingplate
E/F5X11080
0638
695x900x6
Sockelrost /
Basegrid
KSRS5X1
1516
800x400x60
S5X1950 (1200)/320
SB5250/320
SB5500/320
F51080/320
Detail /Details Type F61080/320
Verteile
Type
Type
F61080/
Eingra
S6X295
S6X212
S6X212
Sockel f
SB6250
SB6500
Monta
E/F6108
Sockelr
KSRS6X
F61080/320
S6X2950 (1200)/320
SB625
SB650
SLPS406525
SLPS408500
SLPS401100
SLPS601100
SLPS801100
SLPS111000
