Document No. SB-144 Issue B 15.05.07
How to get Up and Running
Tower
- various designs are available that are adaptable to fit
the FM1803-2 turbine’s post fitting. A pole with an 81mm
internal and 91mm external diameter is needed to affix the
turbine to the tower. Lattice, freestanding and guyed towers
are all suitable depending on the terrain, height and
application. Wind loading figures for your tower design are
available on request from Marlec.
Batteries
– deep cycle lead acid batteries either sealed or
unsealed are suitable for charging from the FM1803-2. A
minimum capacity of 400Ah @ 12V and 200Ah @ 24V is
recommended.
Cable
– 3 core cable is required. The thickness to distance recommendations are: up to 50m
1.5mm² (16AWG), up to 100m 2.5mm² (14AWG). Longer distances are possible.
The controller should always be located indoors and within 2m cable distance of the battery bank.

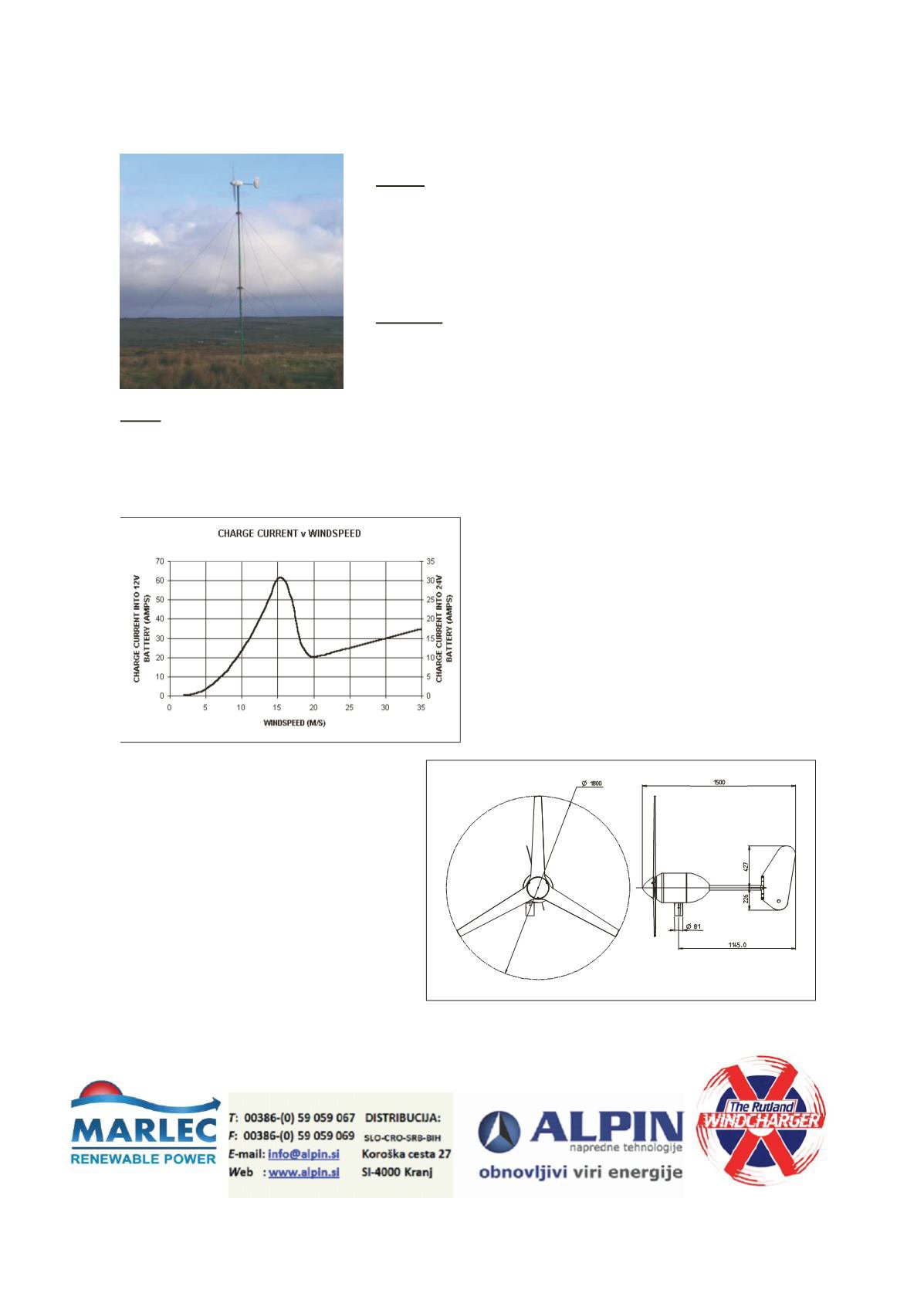

Performance Curve
The FM1803-2 Furlmatic wind turbine is
common to both the 12V and 24V Controllers.
Part numbers: Turbine CA-03/02.
Controllers: 12V CA-04/06, 24V CA-04/07
The FM1803-2 complies with EEC Directive
89/336/EEC ensuring that it does not emit any
radiated interference.
Product Dimensions:
Turbine dimensions are shown right
Weights: Turbine on tower 35.32Kg.
Controller: 280x250x140mm 9.94Kg
Shipping Specifications:
1 carton on a pallet: 1200x675x520mm.
Weight 74Kg
At Marlec we continuously strive to improve
products and as such specifications may change
without notice.
